CSULB Early Childhood Development Center

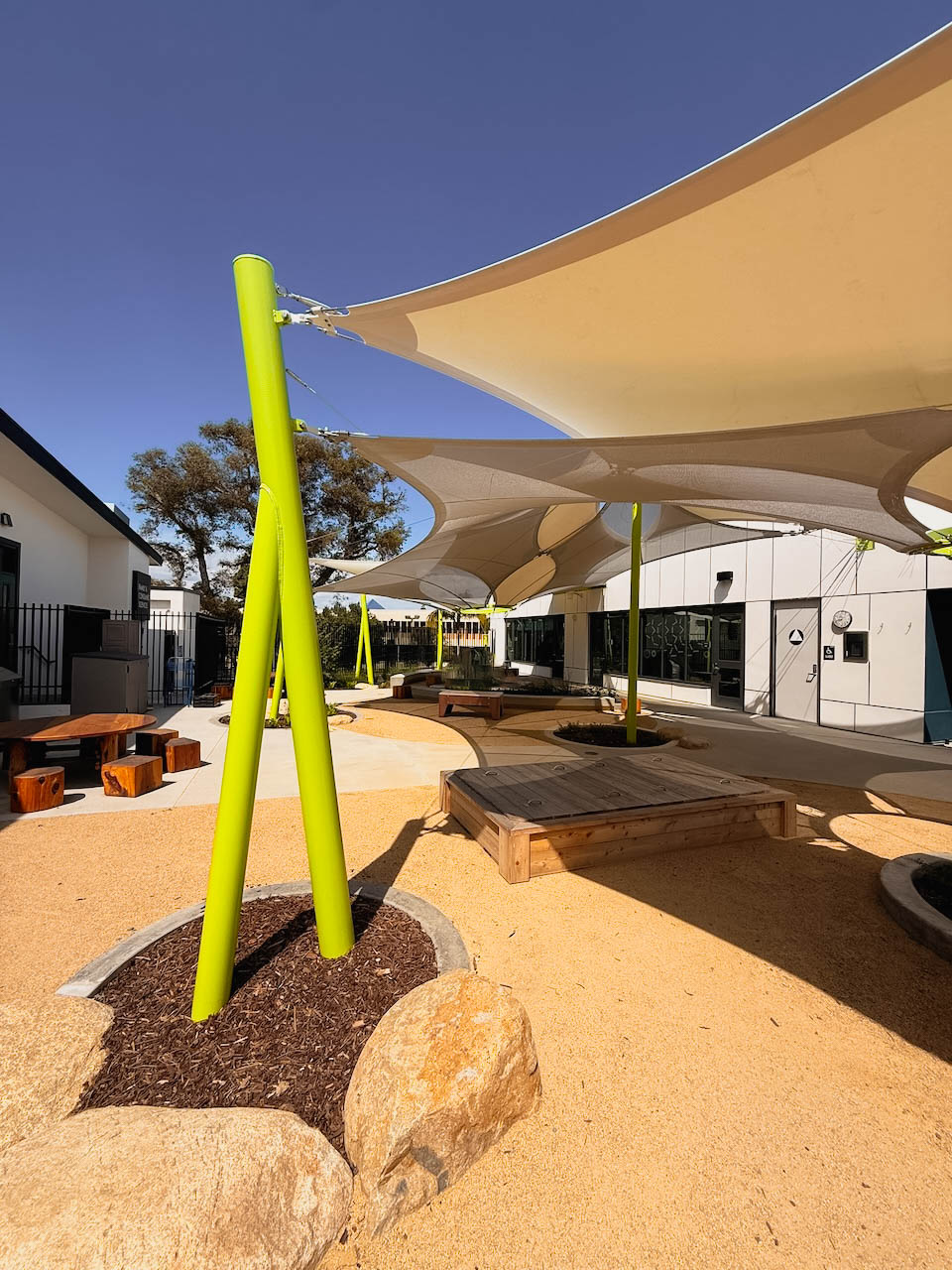

The CSULB Early Childhood Development Center shade structure posed a spatial challenge: our team at GuildWorks had to design and install a permanent shade canopy in a tight outdoor courtyard surrounded by campus buildings. Our design team developed a canopy that flows organically across the entire play space, supported by lime green tension-compression paired steel columns.

Since installation, staff at the center have reported a significant and immediate drop in ambient temperature beneath the structure. This demonstrates a tensile shade's ability to combat the urban heat island effect and create a genuinely comfortable and safer outdoor environment for children and caregivers in the Southern California climate.

The design deliberately incorporates two distinct fabric textures across the canopy panels, a choice made in service of the children who use the space daily. In an early childhood development setting, tactile and visual variety supports imagination and sensory engagement.  while giving the canopy its distinctive, scalloped, flowering geometry when viewed from below.

In order to maximize coverage in the limited area and maintain an architecturally minimal connection hardware profile, the structure has no adjustment at the perimeter and is tensioned as a system using three rings mid-array. The central ring pushes upward using an internal lead-screw adjustment mechanism, and two adjacent rings pull down with cables anchored to the ground. The limited adjustment combined with the highly static (very low stretch) PTFE material required an unusually high level of patterning precision. The result is a striking study in dynamic tension and contrast, disguised as a whimsical floral canopy.

‍
